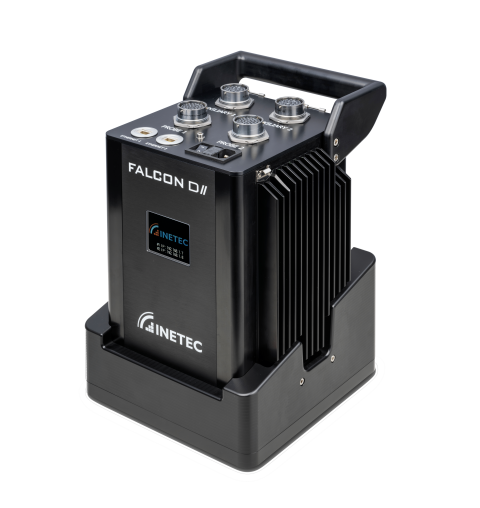

FALCON^DII

FALCON ^D II is a new generation eddy current instrument providing higher performance with exceptional signal quality even in the demanding industrial environment.

Product Overview

Key features

• Supports multiple probes, a large number of coils and channels applicable in the most demanding industries such as nuclear
• For tubing and surface array inspections
• Lightweight - 9 kg
• Two probe modules enabling simultaneous inspection
• Available in integrated and stand-alone solutions
• Exceptional signal quality even in noisy industrial environments
• 2.83" display for general status – IP address, connect/acquisition status

Supported methods

• EC - Eddy current
• ECA - Eddy current array
• MRPC - Motor rotating eddy current inspection

Technical

• Supports large number of coils and channels – up to 640 each board
• Multiplexer version available
• Compatible with other vendor probes through custom adapters

Probe connectors

• 2 x 41 contacts
• 16 physical EC inputs
• Up to 5 frequencies simultaneously sampled
• Up to 640 multiplexed time sloted channels each
• 2x2 powerful generators up to 30 VP-P and 1 A each
• 10 Hz – 6 MHz bandwidth

Auxiliary connectors

• 2 x 27 contacts
• 4 encoder inputs support all encoder types connection- X,Y scanning
• 8+8 digital isolated inputs and outputs
• Power supply for encoders or additional equipment

Connectivity

• Connect to a PC using INETEC EddyOne Acquisition and Analysis software
